T&G Installation Helper



Tired of Struggling to Install Boards by Yourself?

Ever wish you had an extra set of hands but you don’t want to hassle with hiring an extra person or asking a friend or neighbor for help?

Frustrated with holding boards in place while trying to fasten them?

Have you ever passed on bidding jobs because you don’t have the help to get those jobs completed solo?



Our tool will get you through those concerns and allow you to get the job done yourself!

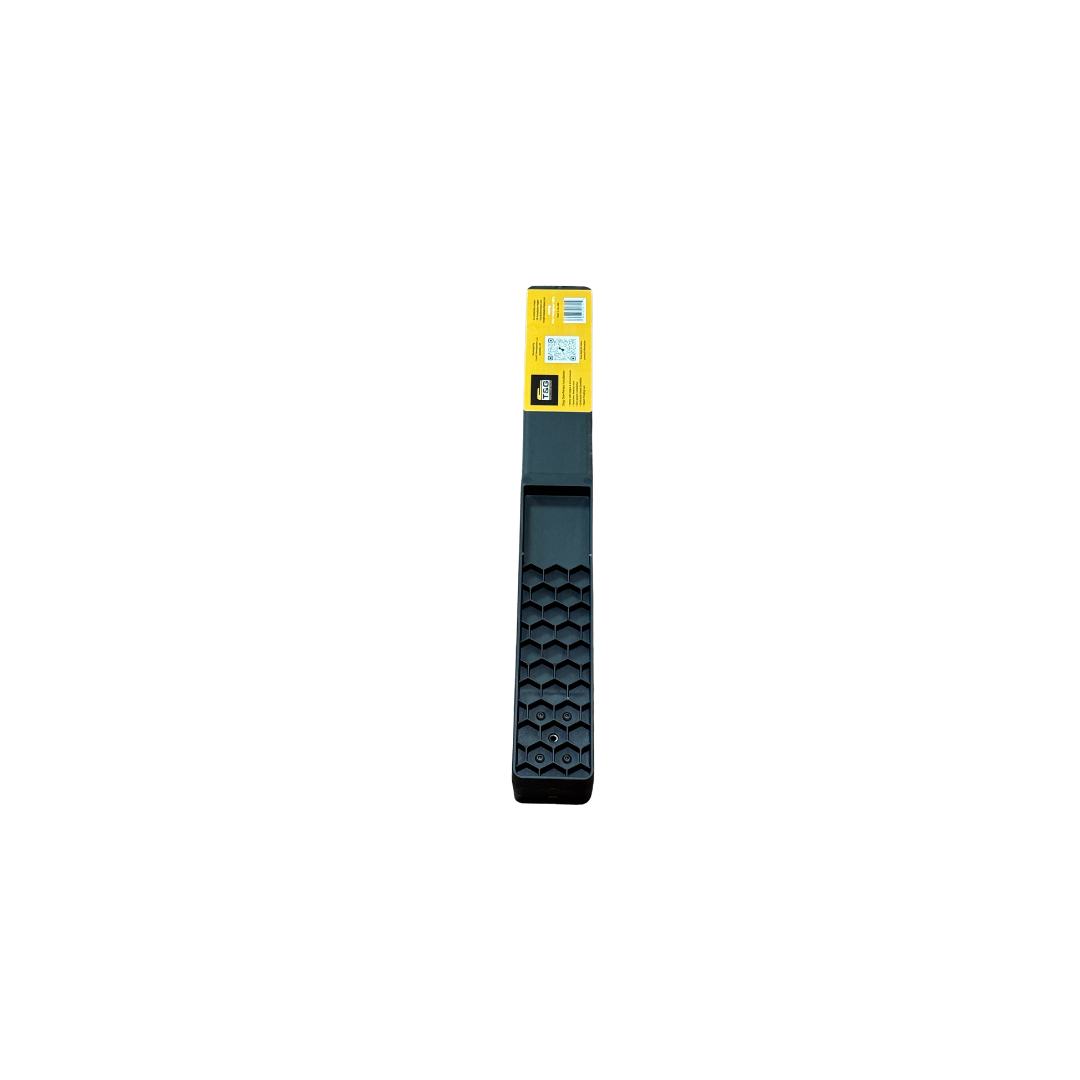

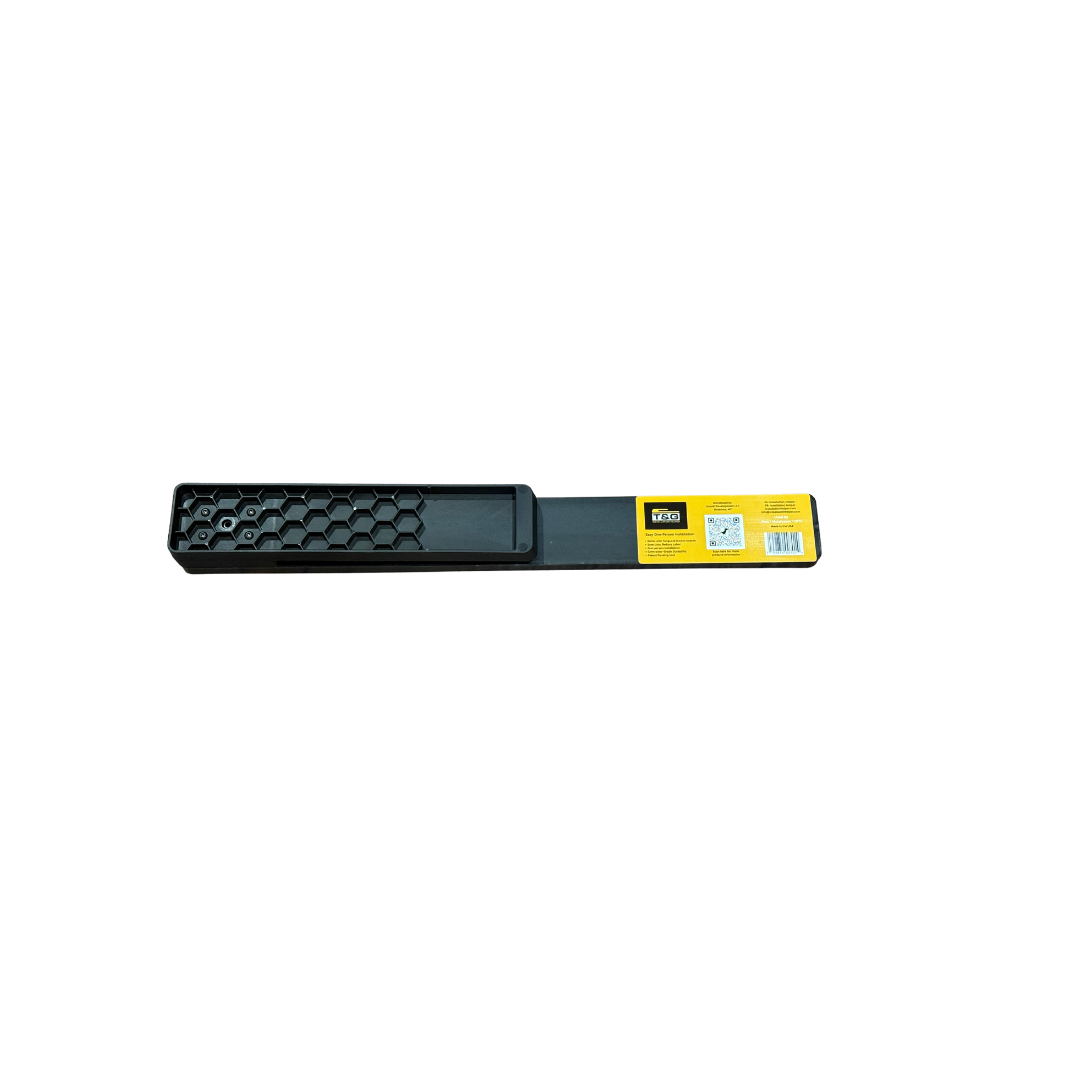

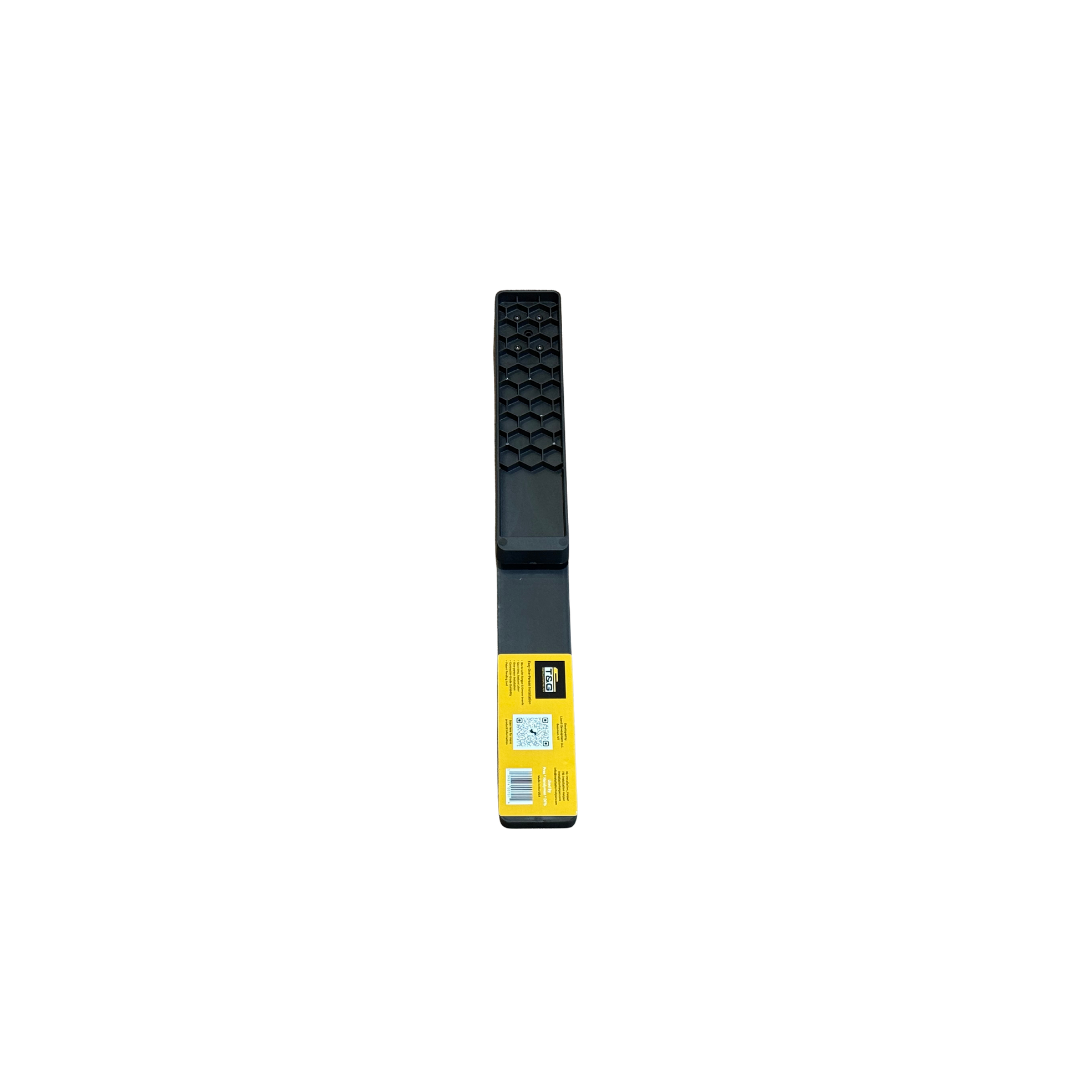

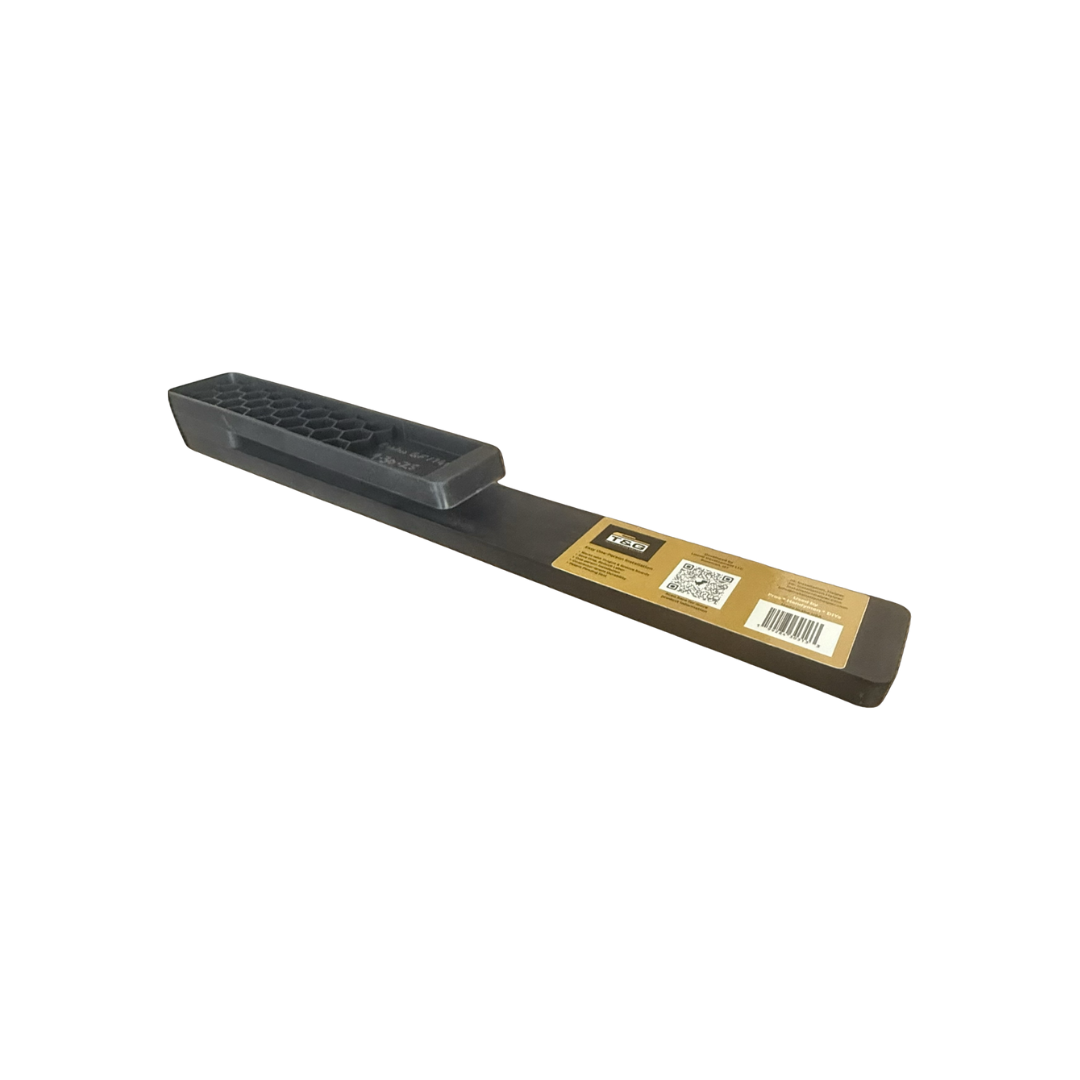

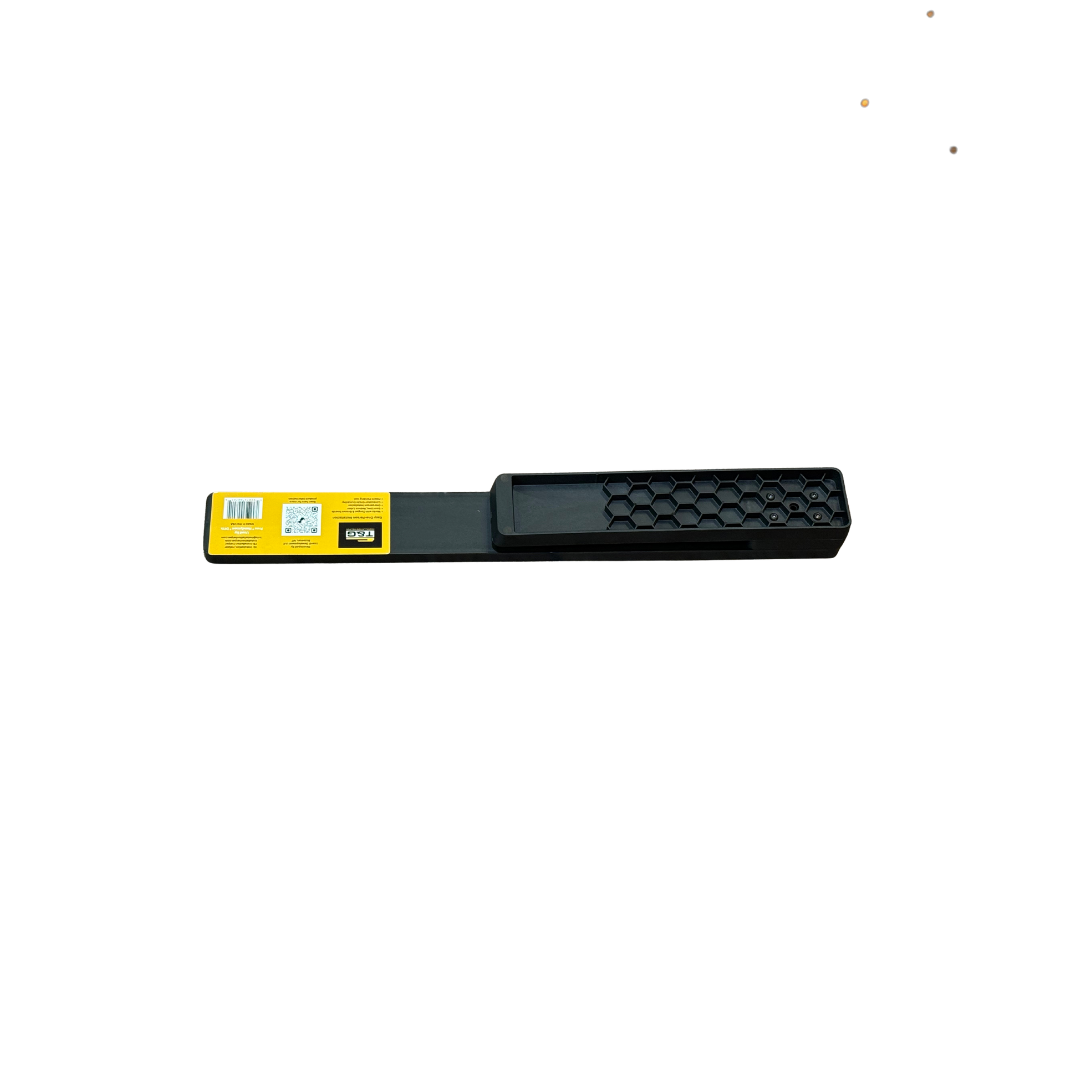

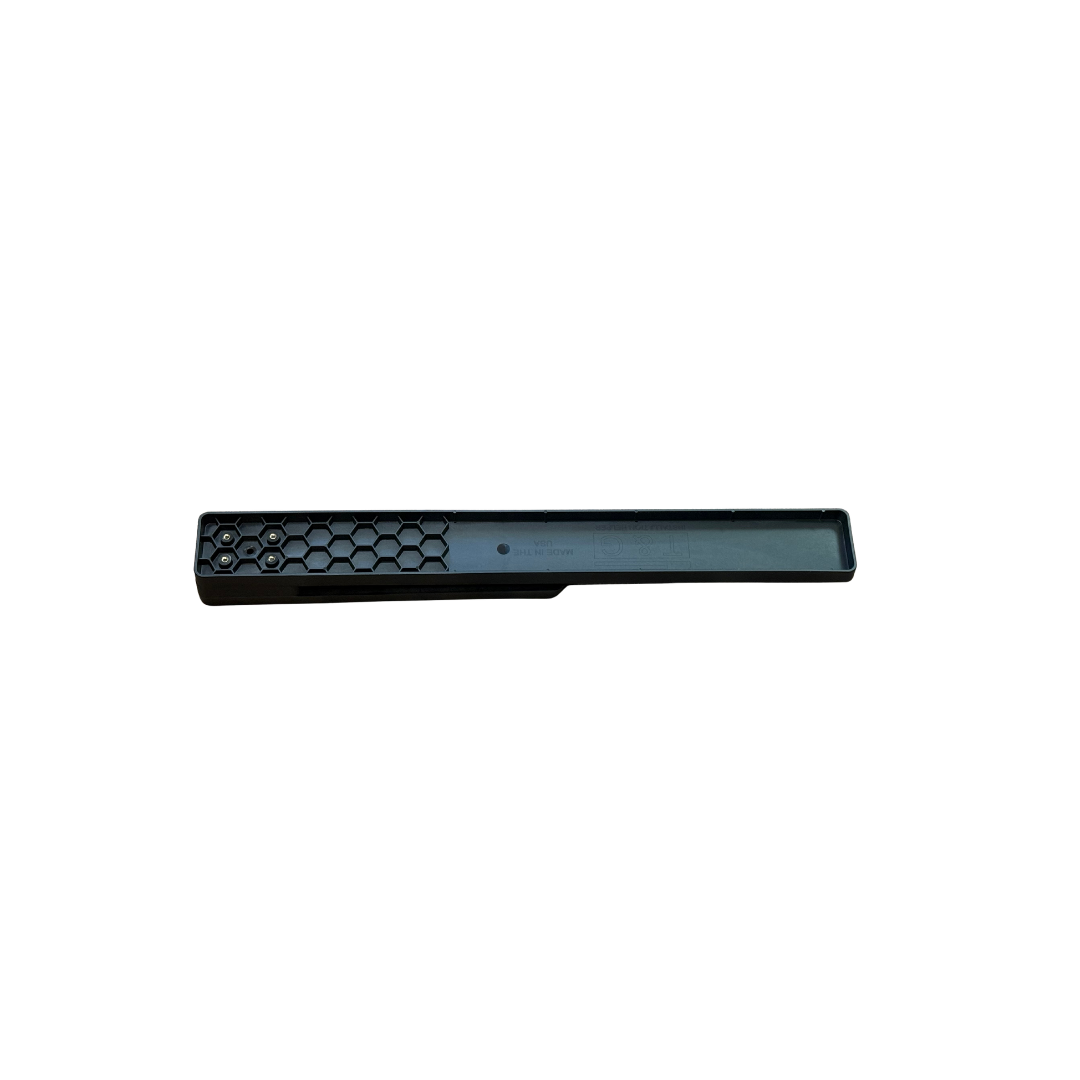

T&G Installation Helper (TAGH)

From the first board to the last, the T&G Installation Helper lets one installer hang tongue & groove boards and work hands-free with control, precision, and safety.

On crewed job sites, it improves productivity by freeing up team members to focus on other tasks—resulting in faster completion and greater overall efficiency.

Need Two? Save with the Pro-Pack

Get two Installation Helpers and save with our Pro-Pack.

Ideal for larger projects, longer materials, and added support when working with plywood, drywall, Hardie® boards, and similar materials.







 SHOP THE PRO-PACK





Product Details

SPECIFICATIONS

Spec	Detail
Board Thickness	Used with boards up to 3/4" inches in thickness
Max Board Length	Used with boards up to 16' feet in length
Mounting	#10 × 3½" washer-head wood screw (not included)
Material	Injection-molded, construction-grade plastic
Weight	1.5 pounds
Color	Black
Patent	Patent Pending
Origin	100% Made in the USA



Key Features



Solo Install Ready: Perfect for one-person crews and DIY projects.

Dual-Orientation Design: Works on both walls and ceilings.

Built-In Tension Grip: Tensioned opening keeps boards secure.

Durable Build: Injection-molded, construction-grade plastic for long life.

Compact & Lightweight: Easy to carry, store, and maneuver on ladders.

No Assembly Required: Delivered assembled

Patent Pending / 100% Made in the USA



A simple three-step process.

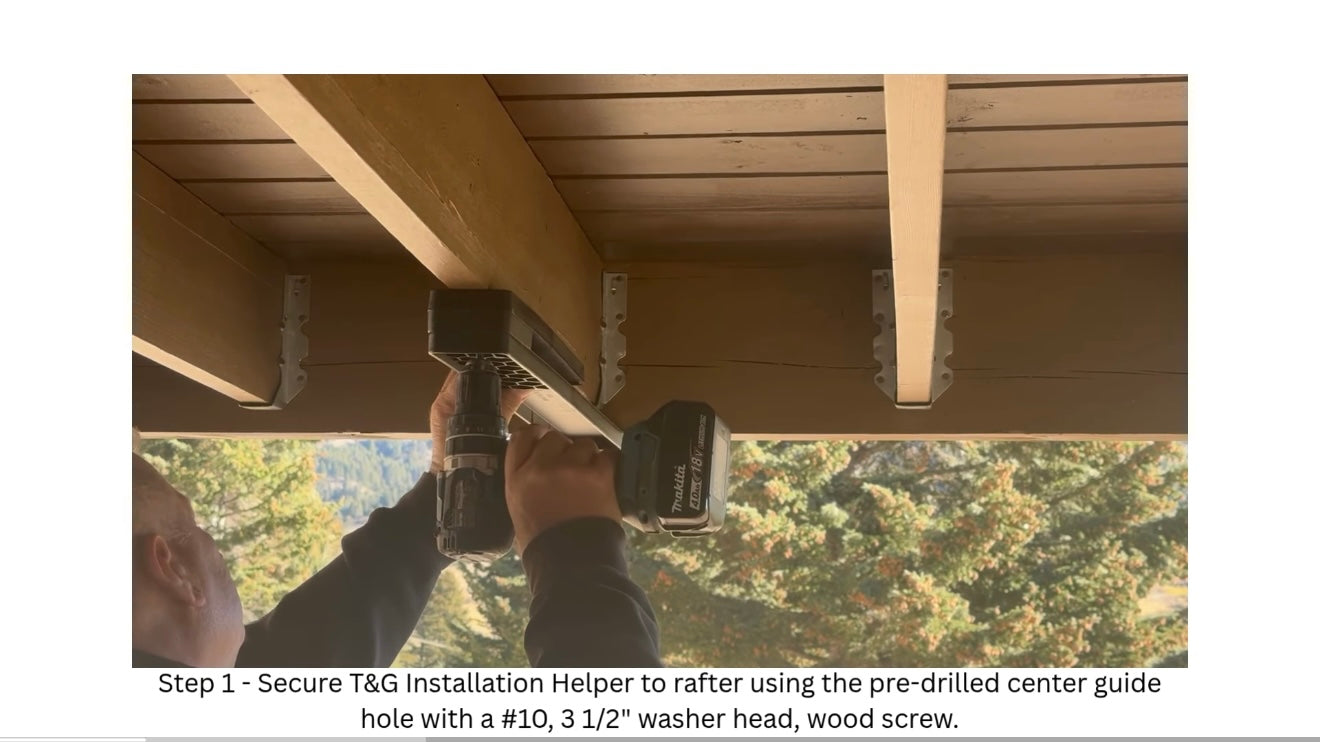

STEP 1: Fasten the tool to the rafter or stud (one screw).

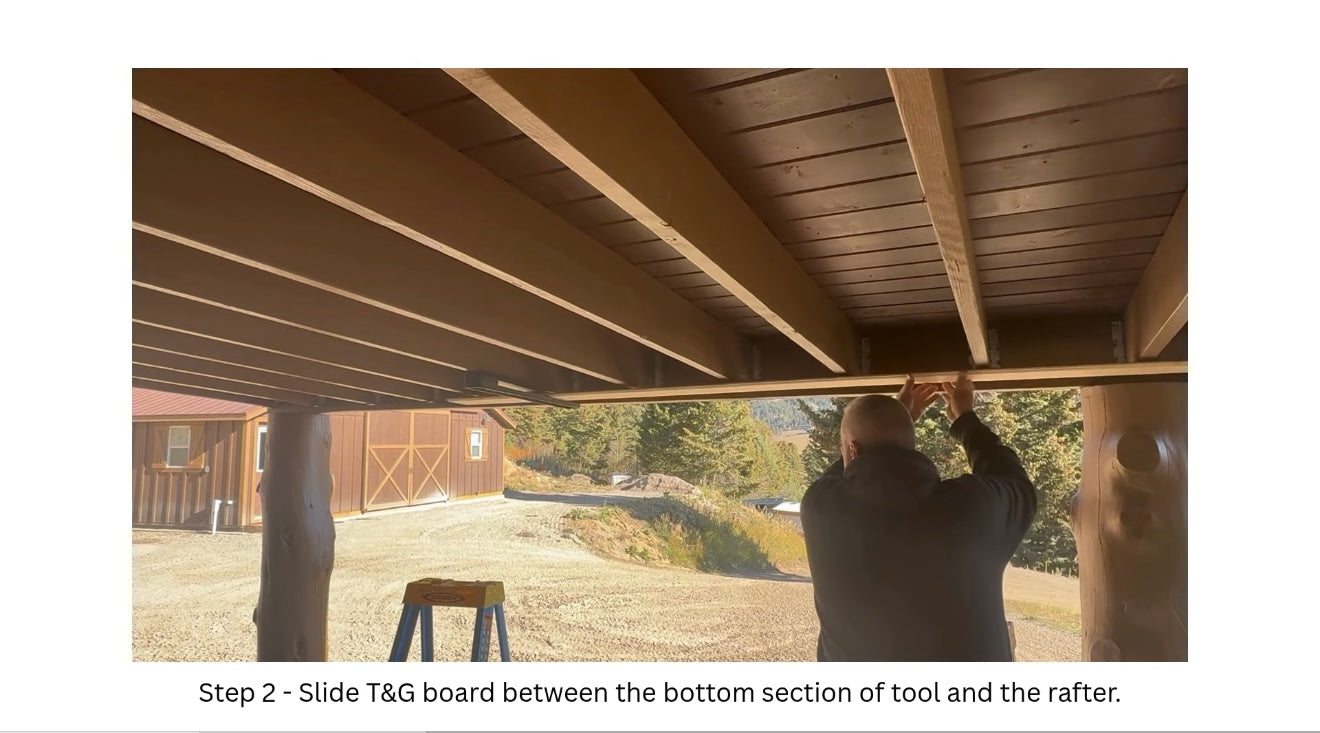

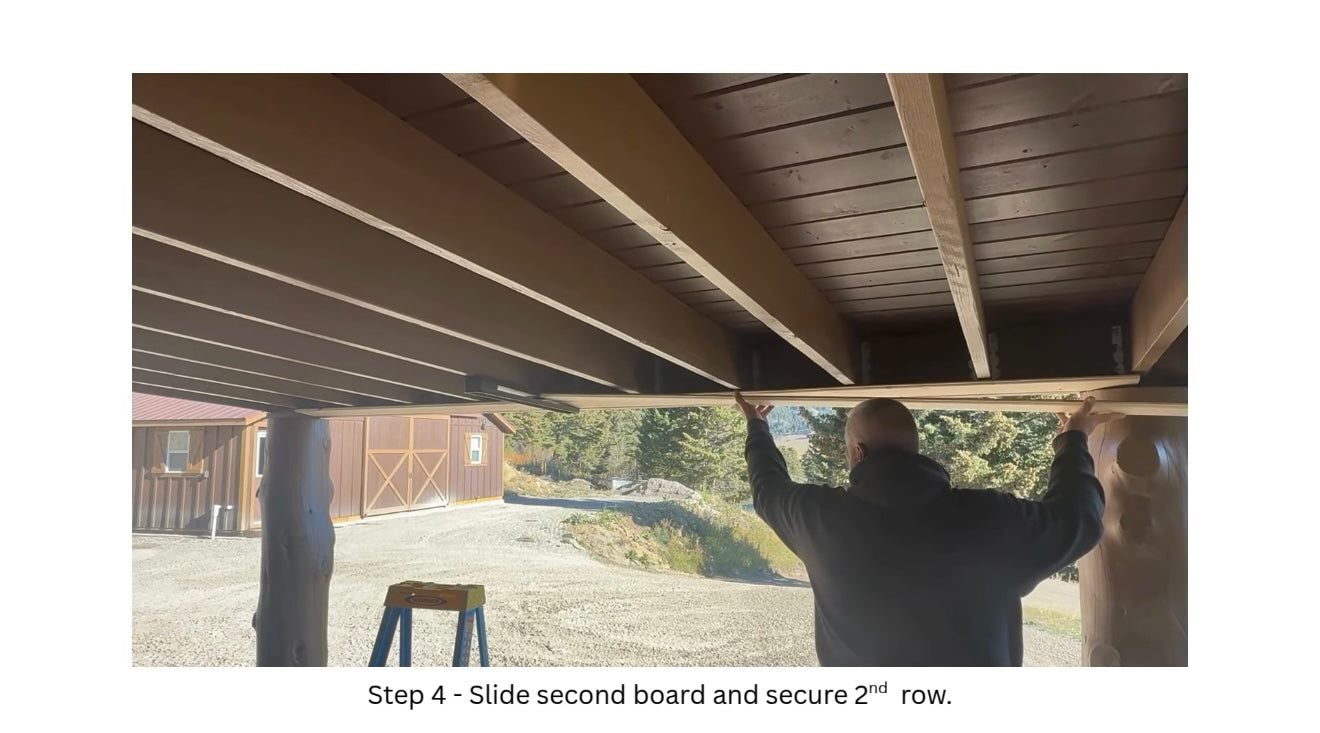

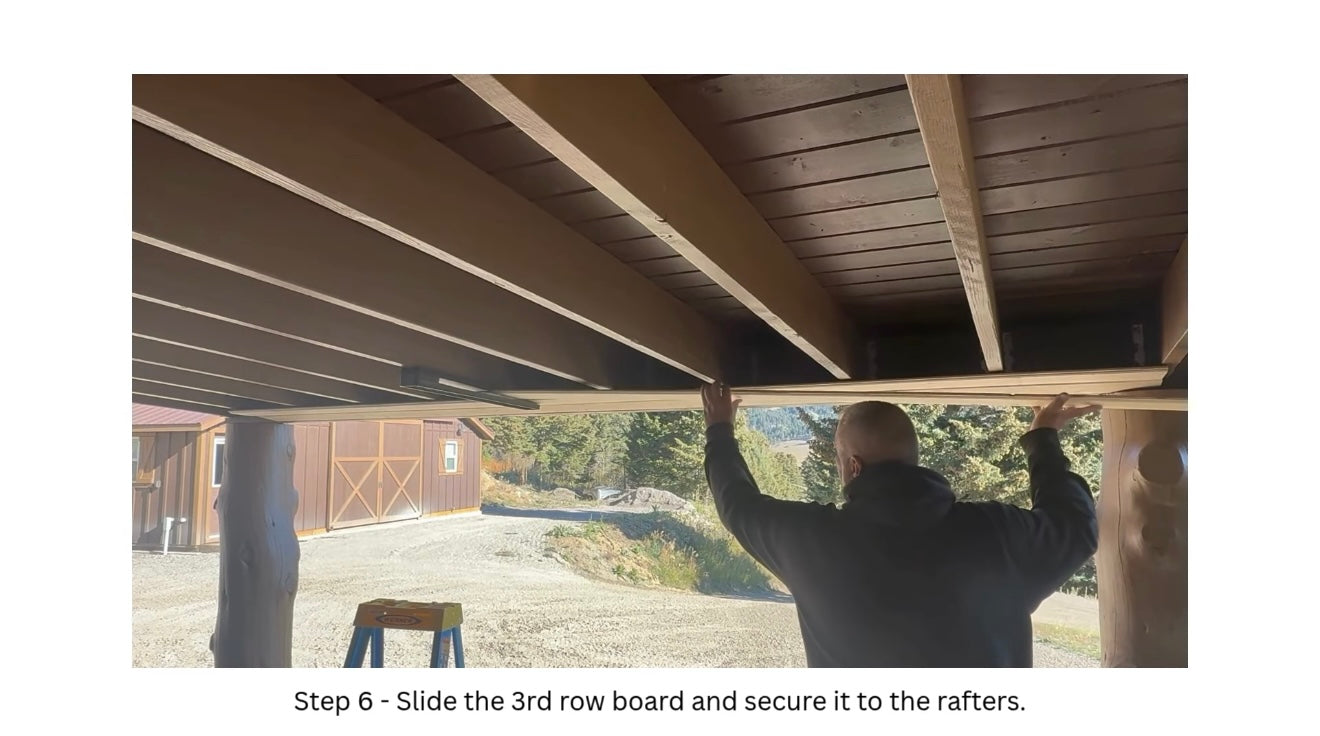

STEP 2: Set the board in the cradle—go hands-free.

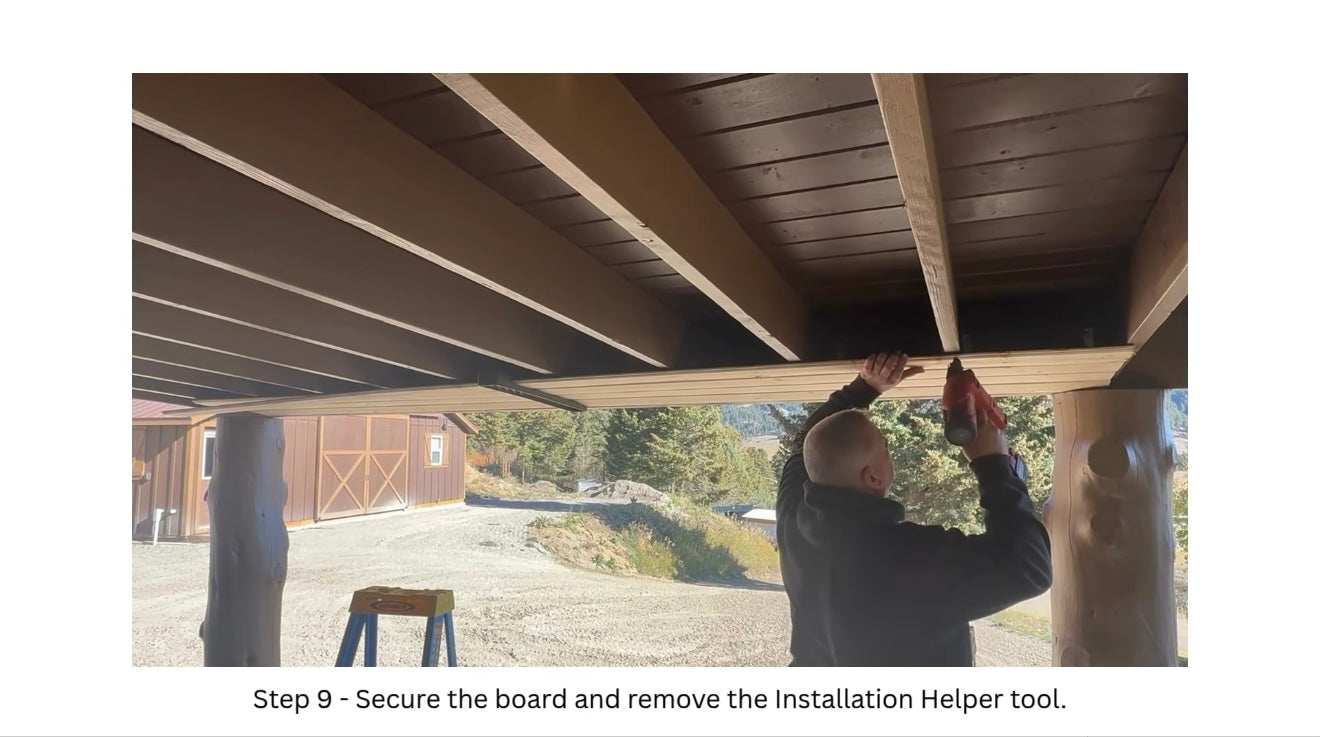

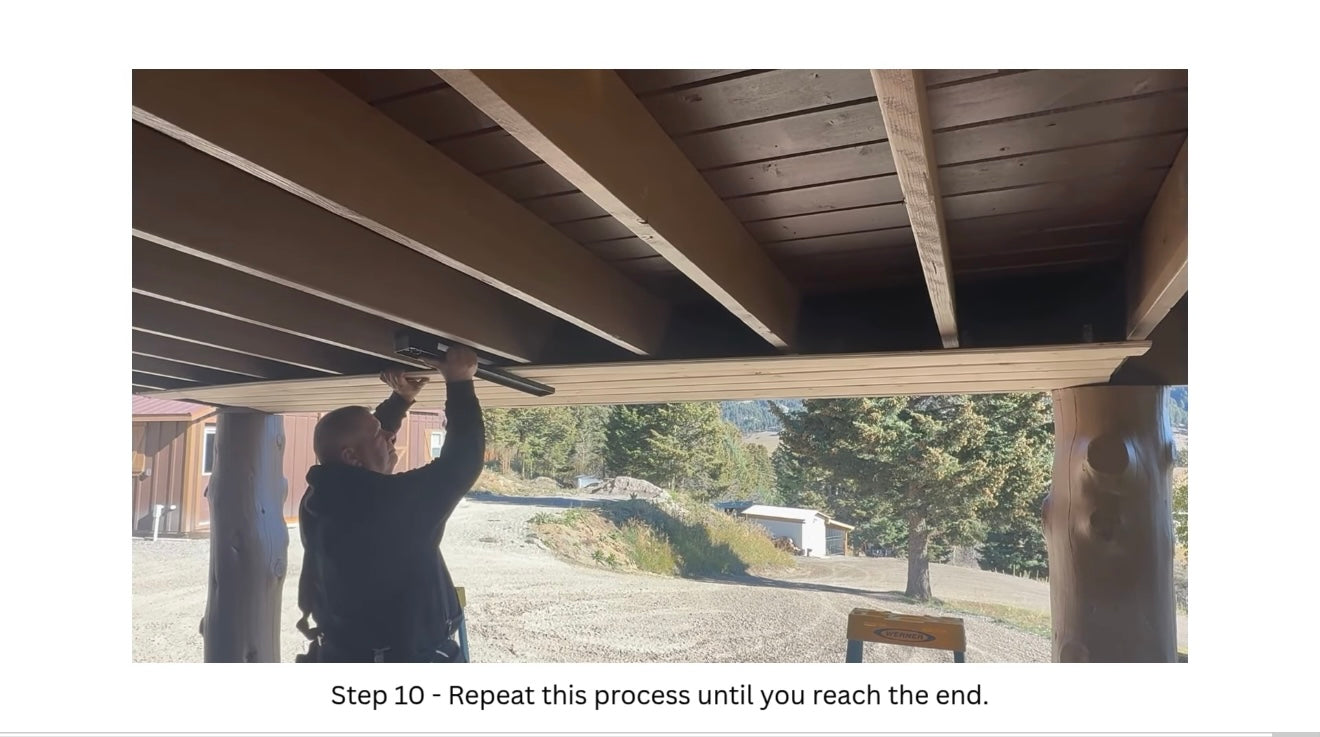

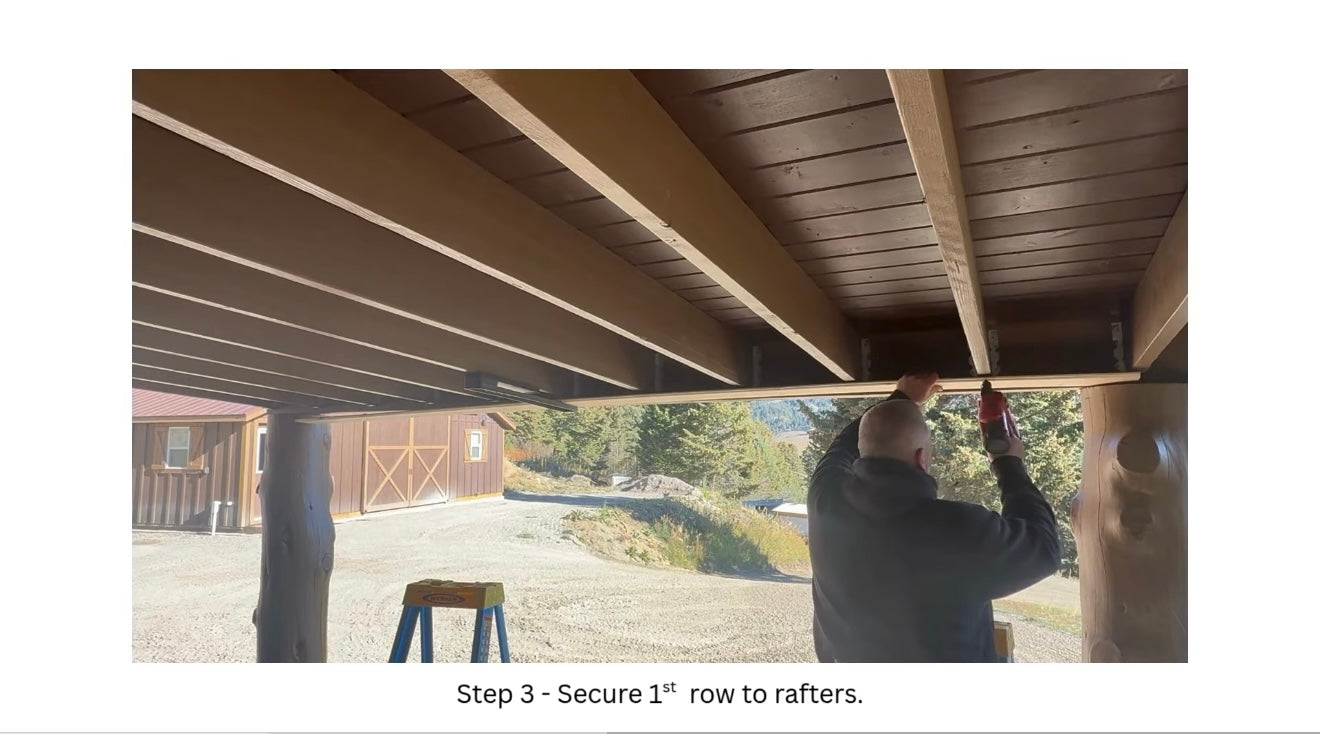

STEP 3: Secure the board and move to the next position.



WHO IT'S FOR

✅ Contractors
Boost crew productivity and free up labor for other tasks.

✅ Handymen
Take on T&G jobs you used to turn down.

✅ DIYers
Get professional-level results on your own without the struggle.



Without the Installation Helper:

• 🚫 You need another person to hold boards
• 🚫 Slower work
• 🚫 Higher labor cost
• 🚫 Misalignment and frustration

With the Installation Helper:

• ✅ One person installs with speed
• ✅ Holds boards firmly and safely
• ✅ Perfect alignment
• ✅ Zero stress, zero wasted time



Things to keep in mind

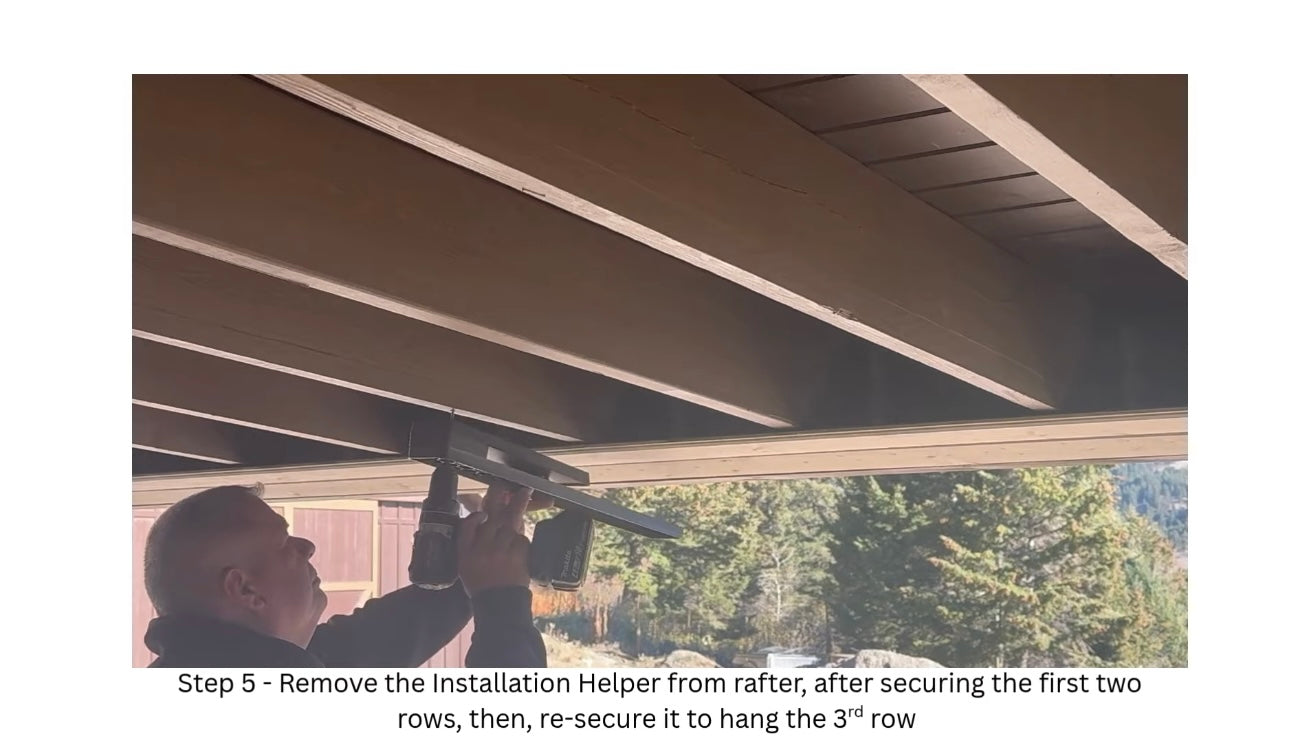

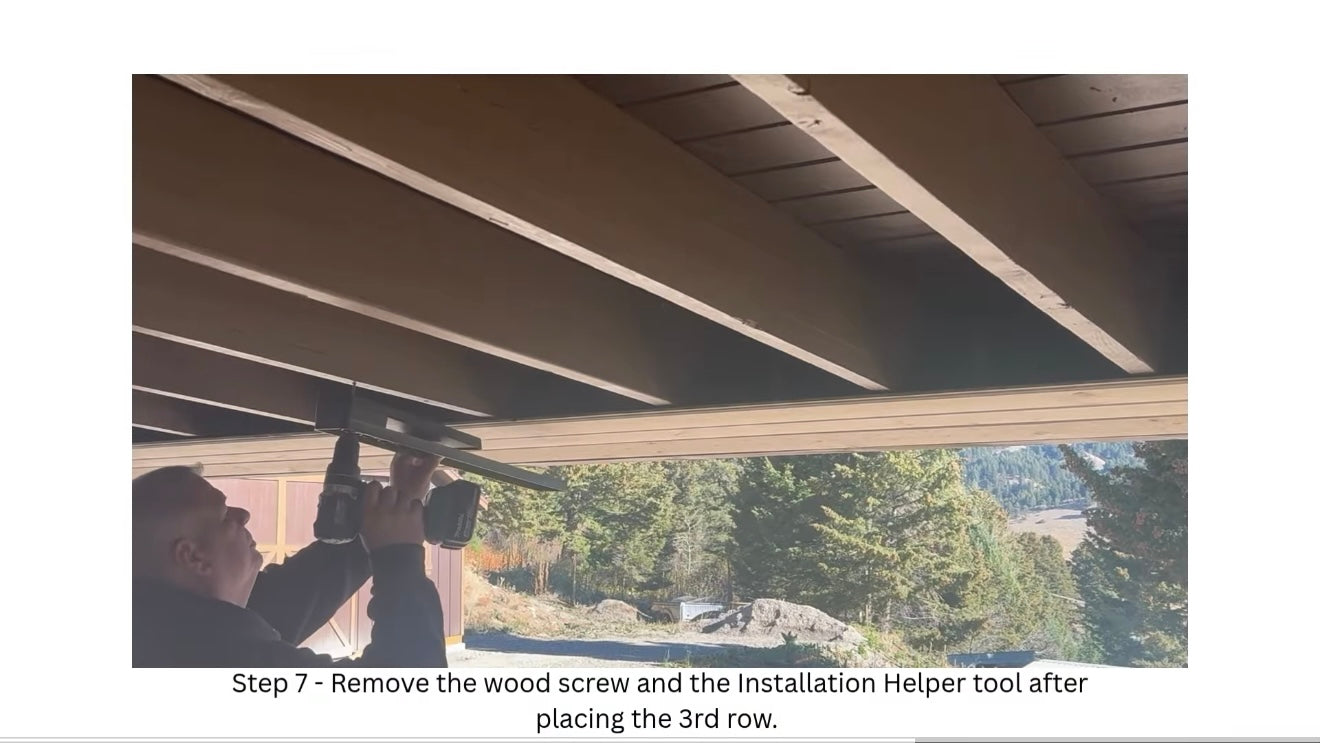

(1) Each installer at every worksite is responsible for the design layout of the tongue & groove boards. The T&G Installation Helper aids in hanging the boards, not determining the design layout. Re-positioning the tool while securing the first three rows of boards is required and depends on how you layout your boards. In some builds, using 2 T&G tools can be beneficial to the installer. This all depends on the installers skill and needs for the job.

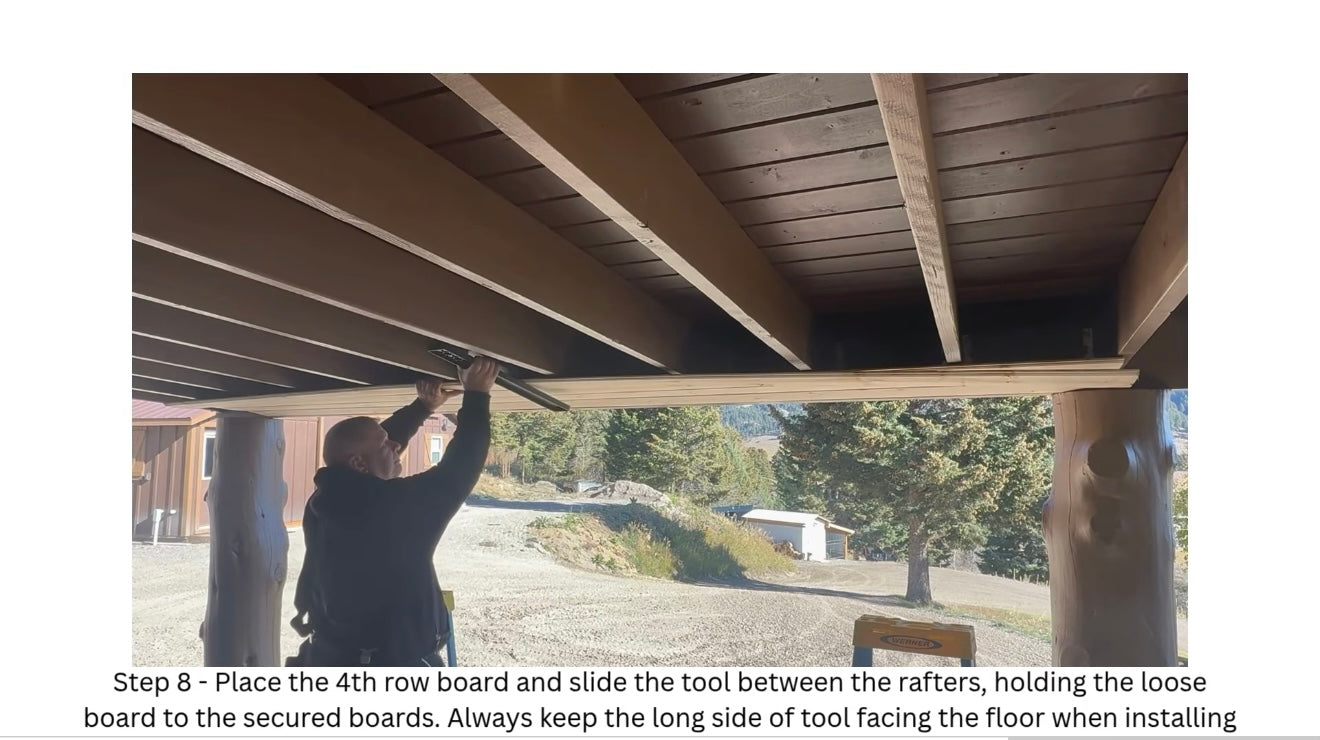

(2) When using the T&G Installation Helper on ceilings, the shorter end always faces the ceiling, and the long end always faces the floor. If used on walls, the shorter end always faces the wall, and the long end always faces the installer.

(3) Secure the T&G Installation Helper using a #10, 3 1/2" washer head wood screw (not included) on the rafter of your choosing. This depends on how your laying out your rows.



Fastener selection and placement are the installer's responsibility and should be based on:

• Board species and thickness
• Project spacing and layout
• Manufacturer recommendations for the specific material
• Applicable building practices and local code requirements

The Installation Helper does not prescribe nail or screw spacing, and no guidance provided here guarantees code compliance. Always consult manufacturer specifications and applicable building codes for your jurisdiction.

⚠️ Safety & Installer Responsibility: The installer is solely responsible for all fastening decisions, structural adequacy, and compliance with local building codes. Use appropriate personal protective equipment when working overhead. Work within your skill level and consult a licensed professional when required.

✅ More Than Just Tongue & Groove installations

The T&G Installation Helper can also be used to support sheets of plywood, drywall, HardieBacker® cement board, and similar materials—holding them securely in position, hands-free, while you fasten them in place.

Follow the instructions below and refer to the accompanying photos for additional guidance.

Step-by-Step Instructions

Step 1 — Separate the Tool

Remove the screws connecting the two halves of the Installation Helper. For this application, use only the shorter half with the built-in spacer.

Step 2 — Secure to the Stud

Fasten the shorter half to the wall stud with the spacer facing the stud. Rotate the tool 90° so the longer section is out of the way, allowing you to position the sheet.

Step 3 — Position and Support the Sheet

Once the sheet is positioned, rotate the tool back 90° to its vertical position.

The built-in spacer supports the weight of the sheet, while the longer section holds it firmly against the studs—freeing your hands to secure the material in place.

One Tool. Multiple Applications. Built for Working Solo.



For full instructions on use of tool view: How it Works



What's Included

• 1 x T&G Installation Helper tool - (unless multiples ordered)
• Shipping box 26" x 4" x 4"
• Quick-Start Instruction Card
• QR Link to Product Information pages

Shipping

• All orders processed within 1-3 business days.
• We ship USPS Priority mail, Parcel select ground & Ground advantage, UPS: UPS 3 day Select, UPS Ground & UPS Ground Saver
• Shipping charges are calculated and displayed at checkout
• Shipping box 26" x 4" x 4"
• Domestic shipping only

For further information view: Shipping



Returns & Warranty

• 30 - Day Return Policy
• 1 - Year Limited Warranty

For further information view: Returns & Warranty
